Melt Flow Indexer MP 1200

The MP1200 features the latest in melt flow measurement technology and allows operators to quickly and easily set up and perform melt flow tests, according to ASTM D1238, ISO 1133-1 & 2, and other international and industrial specifications.
The MP1200 is available in two versions: a manual version (Model MP1200), and a motorised version (Model MP1200M). The manual MP1200 comes with everything you need (except weights and laboratory balance) to perform an ASTM D1238 Procedure A (manual cut) gravimetric melt flow rate (MFR). Test loads are applied manually. The MP1200 can be upgraded with optional features, including ISO 1133 tools and an encoder-based programmable piston displacement transducer (or PPDT for short), for testing according to Procedures B & C (ASTM D1238) or for volume measurement tests (melt volume rate or MVR) and melt density calculations. Also available are manual and automatic specimen cutting tool attachments, which can be used with some materials to reduce human involvement with the machine during the test and increase accuracy and repeatability.
The MP1200M is equipped with a motorised weight lifting and lowering device (WLD) that further automates the testing procedure. The WLD safely and automatically applies test weights to the piston at a user selected time interval during the test. It is also available with the PPDT and cutter options, as well as the Flow Rate Ratio (FRR) attachment for ASTM D1238 Procedure D for polyethylene and the Purge and Purge/Clean options.
Both versions feature a redesigned furnace that uses a three-zone band heater for unsurpassed temperature control (+/- 0.1°C from set point) along the entire testing area of the bore, meeting Melt Flow Indexers MP1200 the new requirements specified in ISO 1133-2. The furnace also features a quick action die release for easy removal of the die for cleaning after a test.

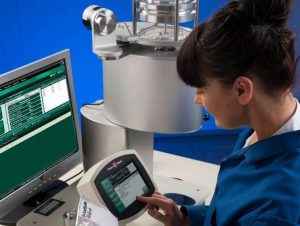

The MP1200 features a user-friendly color touch-screen LCD display. Operators can configure the options available for the machine and program user settings (language, units, alarms, etc). Individual test protocols can be set and stored for rapid recall when needed. When programming tests, operators have the option of selecting which sample identifiers they wish to use from a preloaded list or can make their own identifier. They can also select which test results they wish to report. Test results are displayed automatically at the end of the test and can be saved or printed out to a printer connected to the MP1200’s USB port. For more sophisticated data collection, the MP1200 works with Tinius Olsen’s Horizon software, which can store an unlimited amount of test settings and test results. Test reports and SPC control charts can also be generated.
